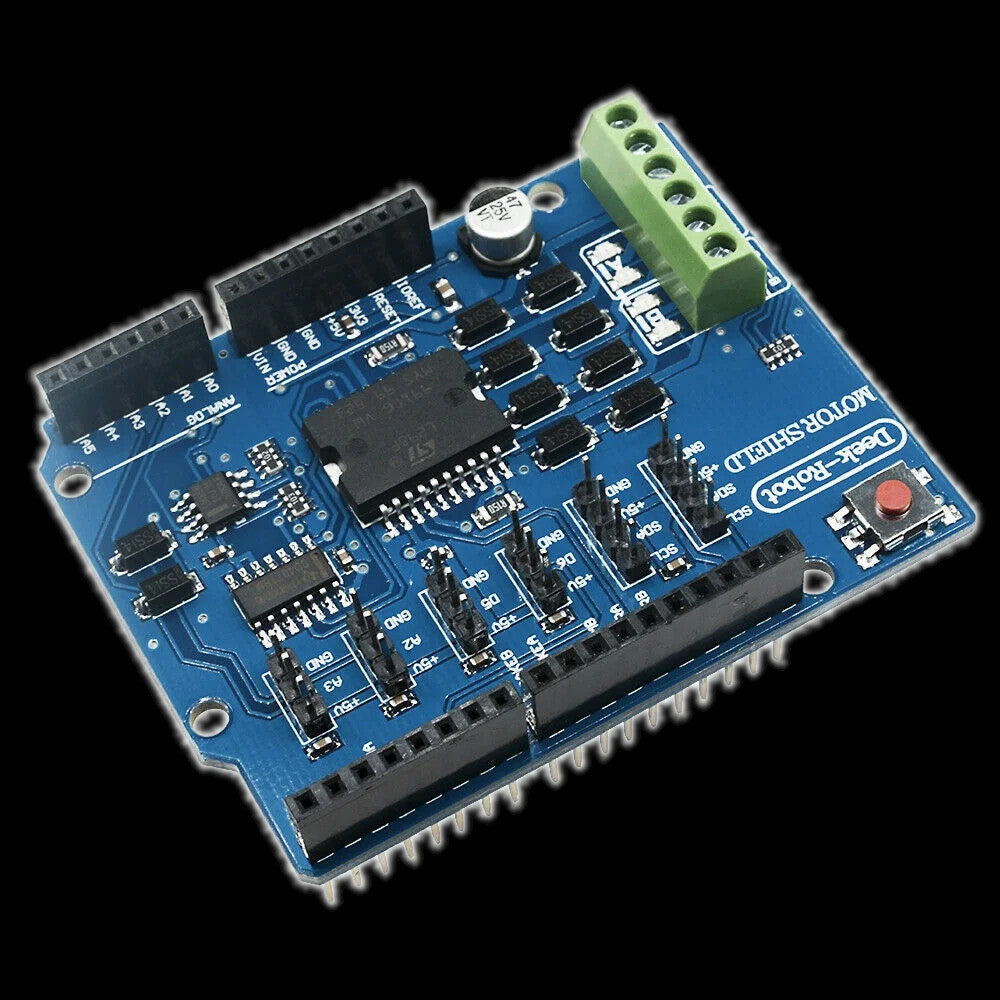

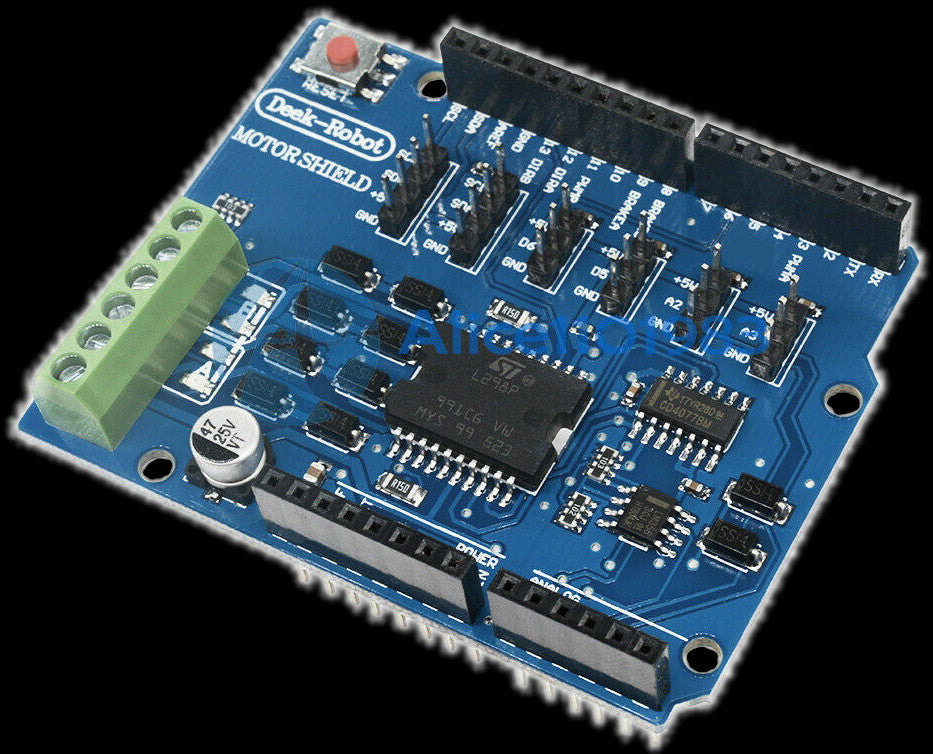

Arduino R3 Motor Shield

Arduino R3 Motor Shield for DCC-EX

Overview
The Arduino R3 Motor Shield is a powerful and versatile accessory tailored for model railway enthusiasts leveraging DCC-EX systems. Designed to pair seamlessly with the Arduino Uno R3, this motor shield transforms your board into a capable and cost-effective Digital Command Control (DCC) station. With dual motor channels and robust performance, it’s perfect for driving locomotives, controlling accessories, and automating layouts with precision.

Key Features

• Optimized for DCC-EX: Fully compatible with DCC-EX Command Station firmware, enabling quick and reliable setup for controlling locomotives, turnouts, and other DCC accessories.
• Dual H-Bridge Motor Drivers: Equipped with L293D ICs, it provides independent control for two motor channels, ensuring smooth and efficient operation of trains and accessories.
• Stepper Motor Capability: Supports stepper motors for advanced turnout mechanisms or animations within your layout.
• PWM Speed Control: Allows for fine-tuned control of locomotive speed and direction, replicating realistic train movements.
• Stackable Design: Fits directly onto the Arduino Uno R3, leaving additional pins accessible for sensors or lights to enhance your setup.
• Built-In Protection: Overcurrent and thermal safeguards protect both the motor shield and connected devices for safe, long-term operation.
• External Power Support: Drive motors and accessories with an external power supply to handle higher power demands without straining the Arduino.

Why It’s Perfect for DCC-EX Users

• Affordable Command Station Solution: Combine the Arduino R3 Motor Shield with an Arduino board and DCC-EX firmware to create a low-cost yet powerful DCC Command Station.
• Versatile Track Power: Use the dual motor channels to supply track power for locomotives and accessories, enabling precise DCC control.
• Expandable Layout Automation: Supports integration with additional modules, such as sensors or lights, to fully automate your model railway setup.
• User-Friendly Setup: Simplifies DCC-EX configuration, making it accessible for both beginners and advanced users.

Technical Specifications

• Motor Driver IC: Dual L293D H-Bridge
• Operating Voltage: 5V (Arduino) / 4.5V–36V (external motor power)
• Current Output: Up to 600mA per channel (peak 1.2A)
• Motor Support: Two DC motors or one stepper motor
• Dimensions: Designed to stack onto Arduino R3 boards
• Interface: Compatible with DCC-EX Command Station firmware

Applications in DCC-EX

• Track Power Supply: Deliver consistent and reliable DCC signals to locomotives.
• Turnout Control: Manage switches and trackside accessories with precision.
• Accessory Power: Control lighting, signals, or animations on your layout.

Why Choose the Arduino R3 Motor Shield for DCC-EX?
Unlock the full potential of your model railway with the Arduino R3 Motor Shield, the ideal companion for DCC-EX systems. Its flexibility, affordability, and compatibility make it an essential tool for creating a dynamic and immersive layout. Whether you're upgrading an existing setup or starting fresh, this motor shield delivers everything you need to bring your railway to life.

Take your DCC system to the next level—choose the Arduino R3 Motor Shield today!
