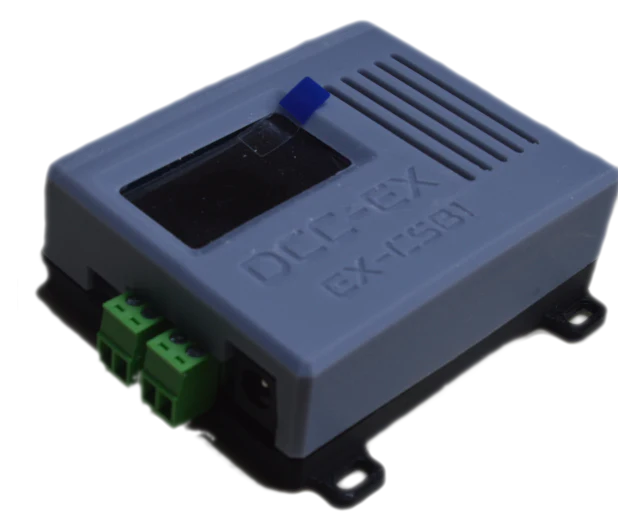

Default Configuration for DCC-EX CSB1 Controllers

Default Configuration for DCC-EX CSB1 Controllers

Updating or reflashing your DCC-EX CSB1 Command Station with the correct configuration can be confusing without guidance. This step-by-step tutorial helps you use the EX-Installer default config files so your CSB1 works reliably every time.

What This Guide Covers

  • Why default configuration matters
  • How to download and apply default files
  • Step-by-step EX-Installer setup
  • Troubleshooting and tips

Why Use the Default CSB1 Configuration?

Many users want to update their CSB1 firmware but aren’t sure which settings to use. The default configuration provided here matches the hardware supplied by ACI Model Railways, so you can update confidently knowing it’s correct for your unit.

Download Default Config Files

Download CSB1 Default Configuration Files

Unzip the folder — you’ll use these files during the EX-Installer process to configure your CSB1.

Step-by-Step EX-Installer Setup

  1. Download and install EX-Installer from the official DCC-EX site.
  2. Open EX-Installer and connect your CSB1 via USB.
  3. Select "Use my existing configuration files" and point to the unzipped default files.
  4. Unless you’re updating Wi-Fi, leave config.h unchanged — it already contains essential defaults.
  5. Use myAutomation.h for custom HAL devices or layout expansions.
  6. After installation, save a backup using “Backup config files” if you’ve made changes and use this to replace the default configuration files.

Tips for a Smooth Setup

  • Ensure your USB cable is functional and not just a charging cable.
  • If EX-Installer doesn’t detect the board, restart and try another USB port.
  • For Wi-Fi configuration, refer to the official DCC-EX WiFi section.

Recommended Resources and Next Steps

After configuring your CSB1, check our related guides:

Need Help?

If you’re unsure or run into issues, contact ACI Model Railways support — we’re here to make your digital control experience smooth and enjoyable. Feedback on this guide is welcome, and we plan to expand with advanced configuration tutorials soon.
