How Can I Control My Model Railway From My Phone?
Controlling a model railway no longer has to mean standing beside the layout with a traditional handheld controller.
With a suitable DCC system, your phone or tablet can become a wireless throttle, allowing you to control locomotives while moving around the layout. You can change speed and direction, operate locomotive functions and, depending on your setup, control other parts of the railway too.
But how does your phone actually communicate with a model train?
Can you control a model railway with a phone?
Yes.
If your model railway uses DCC (Digital Command Control), a phone or tablet can be used as a wireless throttle when the command station supports a suitable Wi-Fi connection.
The basic arrangement is:

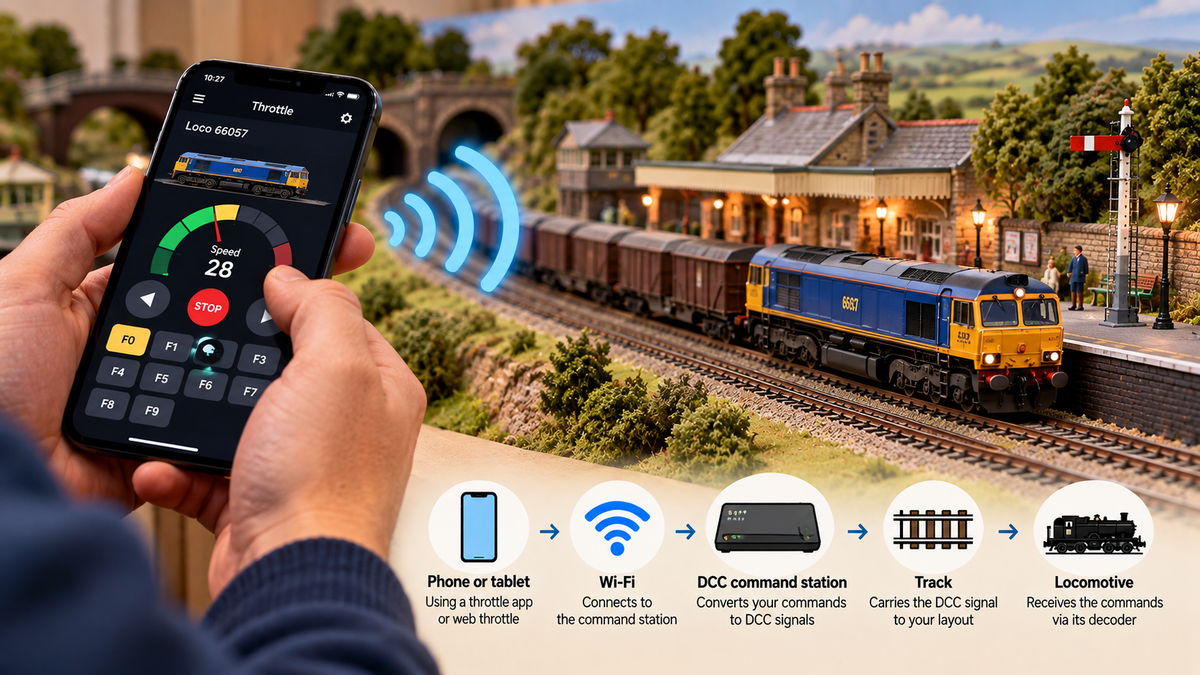

Phone or tablet → Wi-Fi → DCC command station → Track → Locomotive
Your phone doesn't communicate directly with the locomotive. Instead, an app or web-based throttle sends your instructions over Wi-Fi to the command station.
The command station converts those instructions into DCC commands and sends them through the rails to the decoder fitted inside the locomotive.
What do I need?
For a typical phone-controlled DCC model railway you'll need:
- A DCC-equipped locomotive
- A DCC command station with Wi-Fi connectivity
- A suitable power supply
- A phone or tablet
- A compatible throttle app or browser-based throttle
You don't necessarily need a computer running beside the layout.
Once the command station and Wi-Fi connection have been configured, your phone or tablet can provide the controls you use while operating the railway.
What can I control from my phone?
For normal locomotive operation, your phone can provide the same basic controls you would expect from a conventional DCC throttle.
That includes speed and direction together with decoder functions such as lights and, on suitably equipped locomotives, sound.
Wireless control can also extend beyond the locomotive itself. Depending on how your layout is configured, you can operate turnouts, select predefined routes through the layout and trigger animations or other automated actions directly from your phone or tablet.
For example, rather than changing several individual turnouts to move a train from one part of the railway to another, a predefined route can set the required turnouts together, allowing you to select the route you want the train to follow.
The exact controls available depend upon the throttle software you choose, the decoder fitted to the locomotive and the accessories and automation configured on your layout.
One advantage of using a phone or tablet is that the interface isn't restricted by the physical buttons fitted to a dedicated handset. Different throttle applications can present locomotive controls, turnouts, routes and other layout functions in different ways, allowing you to choose one that suits how you operate your railway.
Which phone apps can I use?
There isn't just one way of controlling a DCC railway wirelessly.
With a DCC-EX based system, for example, several throttle options are available.
Engine Driver is a popular choice for Android devices and provides a comprehensive wireless throttle.
WiThrottle-compatible applications provide similar functionality on supported Apple devices.
There are also browser-based alternatives such as EX-WebThrottle, which allow a compatible device with a web browser to act as a throttle without requiring a conventional dedicated DCC handset.
ThrottleCard provides another approach to wireless model railway control and can be used with compatible systems.
This means you're not necessarily tied to one particular handset or control interface.
Does the phone connect directly to the railway?
No — and this is an important distinction.
Your phone isn't supplying power to the railway and it isn't generating the DCC signal.
The command station remains at the centre of the system.
Think of your phone as the control panel. When you move the throttle or press a function button, the command is sent wirelessly to the command station.
The command station then generates the appropriate DCC signal and supplies it to the track.
This is why adding phone control doesn't require special locomotives beyond the normal DCC decoder you would already use.
Do I need internet access?
Not necessarily.
Wi-Fi and internet access aren't the same thing.
Your phone needs a network connection to the command station, but the communication can take place locally. That means a model railway can still be operated wirelessly even where an internet connection isn't available.
Exactly how the network is configured depends upon the command station and the way you want to operate your layout.
Can more than one phone control the railway?
Yes.
One of the useful features of network-based model railway control is that several compatible devices can potentially connect to the same command station.
That can be particularly useful on larger home layouts, exhibition layouts and club layouts where several operators may want independent control.
Rather than passing a single handset between operators, each person can use their own compatible phone or tablet.
Is wireless control only useful for large layouts?
Not at all.
Being able to walk alongside a train rather than remain beside a fixed controller can certainly be useful on a large layout, but wireless control can be equally convenient on a small shunting layout.
For example, you can operate from whichever side of the layout gives you the best view of a coupling operation rather than stretching across the railway to reach a controller.
Whether that is useful to you is largely a matter of how you like to operate your railway.
What about N, OO and HO gauge?
The principle is the same.
Phone control isn't dependent upon the scale of the model railway. What matters is that the locomotive has a suitable DCC decoder and that the command station and power supply are appropriate for the layout.
The track voltage and available current should always be appropriate for the scale, locomotives and equipment being used.
Do I have to build a DCC system myself?
No.
DCC-EX is an open-source model railway control system and can be assembled by enthusiasts who enjoy building and configuring their own electronics.
But building the electronics isn't a requirement for using DCC-EX.
Ready-to-run command stations are also available for people who want the flexibility of DCC-EX without having to assemble a command station themselves.
That means you can choose the approach that suits you: build it yourself, or use a ready-built system and concentrate on operating the railway.
A ready-to-run way to control your railway wirelessly
If you'd rather get running than build your own command station, the ACI CSB1 Ready-to-Run Command Station provides a ready-built DCC-EX solution with Wi-Fi connectivity.
Connect the command station to your layout, choose a compatible throttle on your phone or tablet, and the CSB1 handles the communication between your wireless controls and the DCC railway.
The CSB1 also provides USB-C connectivity, a built-in display and two high-current track outputs, with one output configurable for programming-track use.
View the CSB1 Ready-to-Run Command Station →
Is phone control right for every model railway?
A traditional physical throttle is still perfectly valid, and some operators simply prefer having buttons and a rotary control in their hand.
Choosing wireless control doesn't mean you have to use a phone or tablet. Dedicated physical wireless throttles are also available, combining the freedom to move around the layout with the familiar feel of a handheld controller and physical controls.
Systems using the WiThrottle protocol, including DCC-EX, can therefore give you a choice between a phone or tablet, a compatible physical wireless throttle, or even different types of controller used together on the same layout.
Its main advantage is flexibility: you can move around the railway and choose the control method that best suits the way you operate.
For someone starting with DCC — or wondering “How can I control my model railway from my phone?” — the answer is therefore quite straightforward:
You need a DCC command station capable of communicating over Wi-Fi, plus a compatible throttle on your phone or tablet.
The phone provides the controls.
The command station does the work.
And the locomotive responds through the DCC signal in the rails.
