Can I Run DC Locomotives With DCC-EX?

Many model railway enthusiasts are interested in DCC-EX but are not yet ready to convert their entire locomotive fleet to DCC.

A common question is:

Can I run my existing DC locomotives with DCC-EX?

Why Use DCC-EX with DC Locomotives?

Not every model railway needs to be converted completely to DCC from the outset.

You may have older locomotives, models that are difficult to fit with decoders, or simply a large collection that you would prefer to convert gradually.

You may also be perfectly happy with DC locomotive operation but want some of the other possibilities offered by DCC-EX, such as wireless throttles, turnout control, sensors and automation.

In those situations, operating DC locomotives with DCC-EX can provide a useful bridge between conventional analogue control and a future DCC system.

How Does DCC-EX Control a DC Locomotive?

In DC mode, DCC-EX uses Pulse Width Modulation (PWM) to control the locomotive.

Rather than simply varying a continuous track voltage in the same way as a traditional analogue controller, PWM rapidly switches the output on and off. By changing the proportion of time that power is applied, the system controls the effective power delivered to the locomotive motor.

Direction is controlled by changing the polarity of the DC output.

DCC-EX assigns the DC track or district a virtual locomotive address. You can then select that address using a compatible throttle and control the DC locomotive in much the same way that you would select a DCC locomotive.

The important difference is that with DCC, the throttle is addressing an individual decoder-equipped locomotive. In DC mode, the throttle is effectively controlling the track or power district and therefore any DC locomotive receiving power from that section.

Can I Control a DC Locomotive Wirelessly?

Yes. One of the useful features of DCC-EX DC operation is that the command station handles the conversion between throttle commands and the DC PWM track output.

This means compatible Wi-Fi throttles can be used to operate a conventional DC locomotive without fitting a decoder to the locomotive itself.

Depending on your device and preferred throttle, this can include applications such as Engine Driver and compatible WiThrottle applications, as well as other throttles that can communicate with DCC-EX.

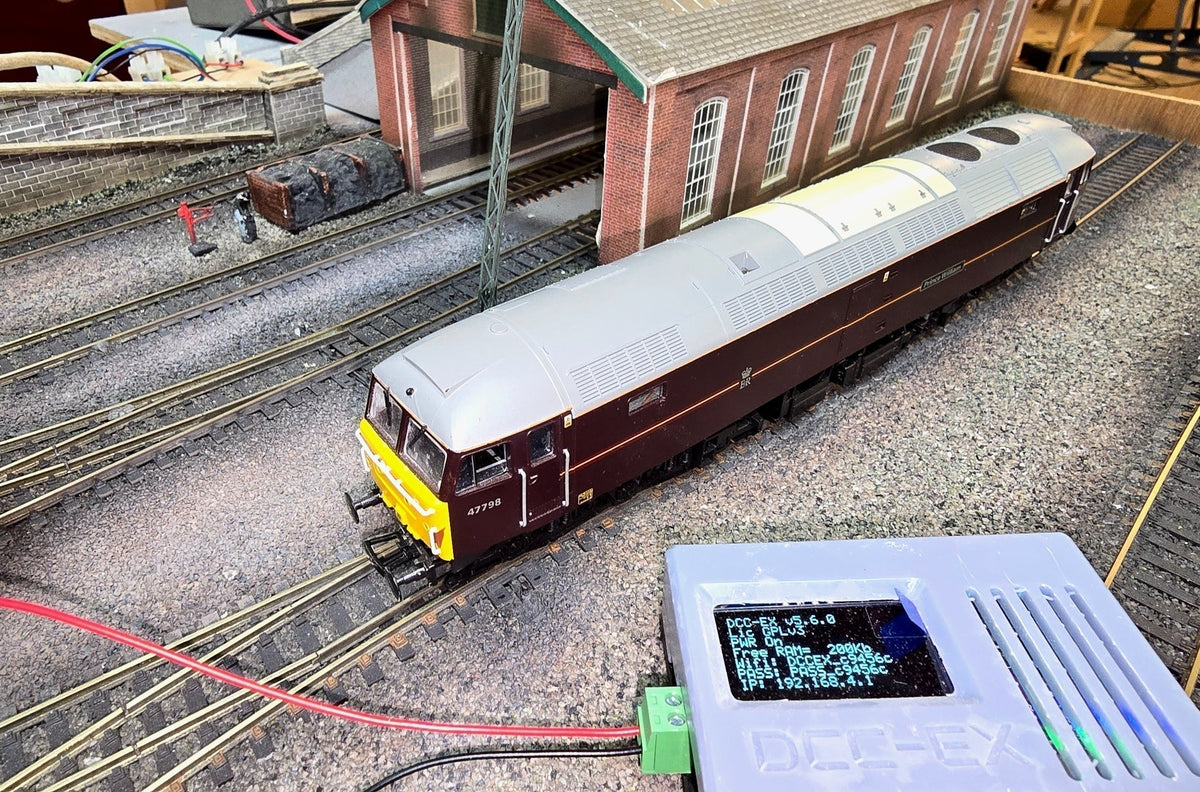

At ACI Model Railways we also use conventional DC locomotives when testing and demonstrating the CSB1's DC PWM operation.

What About Multiple DC Locomotives?

The normal limitations of DC operation still apply.

If two DC locomotives are on the same powered track section, both receive the same track output. They therefore cannot be independently controlled in the way that two decoder-equipped DCC locomotives can.

Independent DC operation requires the railway to be divided into electrically isolated power districts or blocks, with the appropriate sections controlled separately.

For a small layout with one locomotive operating at a time, this may be little different from using a conventional analogue controller. The difference is that DCC-EX can provide wireless throttle control and integrate that DC operation with other layout-control features.

Can I Run DC and DCC on the Same Layout?

Yes, provided the layout is wired correctly.

The CSB1 has two independently configurable track outputs. For example, one can be configured as a DCC output while the other is configured for DC PWM operation.

This can allow one electrically isolated section of a layout to operate DCC locomotives while another isolated section operates conventional DC locomotives.

DCC-EX TrackManager is used to configure the required track mode, including DCC Main, Programming Track, DC and other supported modes.

Used correctly, this provides a practical way to move from DC to DCC gradually rather than converting an entire locomotive collection at once.

Can DC Operation Still Use Automation?

Yes. Running a locomotive using DC PWM does not prevent you from using the wider layout-control features of DCC-EX.

Depending on your layout and additional hardware, DCC-EX can also be used for:

• servo-controlled turnouts;
• signals and lighting;
• train and occupancy detection;
• route setting;
• EX-RAIL automation;
• other accessories and I2C expansion devices.

EX-RAIL can also issue commands that control DC districts, so a conventional DC locomotive can form part of an automated sequence without having a DCC decoder installed in the locomotive.

What About Points and Accessories?

Your choice between DC and DCC locomotive control does not determine how you have to operate the rest of the railway.

You could, for example, continue operating DC locomotives while using DCC-EX for servo-controlled points, signals, sensors and route control.

This can be particularly useful if you want to develop the layout control system first and convert locomotives to DCC gradually.

Is DCC-EX DC Operation the Same as a Traditional DC Controller?

Not exactly.

Both ultimately control a conventional DC locomotive through the track, but DCC-EX uses PWM rather than simply behaving like a traditional variable-voltage controller.

PWM can provide good low-speed control, but locomotive motors can respond differently to different PWM frequencies. Some older motors may also produce an audible hum or whine when operated using PWM.

The appropriate supply voltage should also be chosen for the scale and locomotives being operated. More voltage is not automatically better, and excessive voltage can damage a locomotive.

When Should You Consider Converting to DCC?

DC operation can be a useful starting point, but fitting a locomotive with a DCC decoder provides capabilities that conventional DC operation cannot offer.

These include:

• independent control of multiple locomotives on the same powered track;
• individual lighting and function control;
• sound decoder functions;
• consisting and multiple-unit operation;
• greater control of individual locomotives within automated operations.

You do not have to make that transition all at once. A modeller with a large DC collection might convert frequently used locomotives first while continuing to operate others in DC mode.

If you are planning a wider move from analogue control to DCC, our separate guide explains the process in more detail:

How to Convert a DC Model Railway to DCC →

A Gradual Route from DC to DCC

One practical approach is:

1. Begin by operating your existing DC locomotives using DCC-EX DC PWM control.
2. Add wireless throttles, turnout control or other layout features.
3. Convert selected locomotives to DCC as required.
4. Move more of the railway to DCC operation as the locomotive fleet is converted.
5. Continue expanding with detection and EX-RAIL automation if those features are useful to your layout.

This allows the control system and locomotive fleet to develop independently rather than making conversion an all-or-nothing decision.

Final Thoughts

If you are interested in DCC-EX but still own conventional DC locomotives, you do not necessarily need to convert the entire fleet before getting started.

Compatible DCC-EX hardware such as the CSB1 can operate conventional DC locomotives using PWM while still giving you access to wireless throttles, accessory control and automation.

The important limitation remains the same as any other DC railway: locomotives sharing the same powered DC section cannot be controlled independently.

For modellers who eventually want to move to DCC, however, this provides a useful way to begin building the control system now and convert locomotives gradually.
